Black Kapton Tape

  • Black Kapton Tape
  • Black Kapton
  • Kapton Black
  • Black Polyimide Film

Black Kapton tape, also known as black polyimide tape or black PI tape, is a specialized adhesive tape that is composed of a black polyimide film substrate and a high-temperature silicone pressure-sensitive adhesive coating. This type of tape is specifically designed to provide excellent resistance to high temperatures and is commonly utilized in the automotive, electronic, and aerospace industries for various applications requiring heat resistance and protection.


Hopelight is a professional manufacturer and supplier of black polyimide tape in China, offering a range of specifications to meet different customer requirements. The main specification of our black polyimide tape is 0.06 mm with a length ranging from 33M to 66M. The width of the black Kapton tape can be cut freely between 3 mm and 500 mm to better meet customer needs. Black Tapton tape with PET fluorine release liner can be die-cut, making it easy to use in a variety of applications. Build better with Hopelight, a leading polyimide tape supplier of high-performance black kapton tape. Contact us today for superior strength and reliability.


Black Kapton Tape-Technical Data Sheet

(standatd:GB/T2792-1999,GB/T4852-1999)

Item

Adhesive

Total thickness

(mm)

Width (mm)

Length (m)

Adhesion

(N/25mm)

Tensile Strength

(N/25mm)

Elongation %

Temperature (℃)

Value

silicone

0.06

3-500

33/customized

6

115

45

260

Remark

Black kapton tape packaging is generally roll tape or a single-sided composite release film cut into sheets, or punched according to the special needs of customers.Die-cutting processing is high cost performance! Special specifications can be special processing.


Application Of Black Kapton Tape

The application of black Kapton tape is versatile and finds use in various industries. Here are some expanded details on the applications mentioned:


  • Reflow Soldering and Circuit Board Fixing: Black Kapton tape is commonly used in electronics manufacturing, particularly in reflow soldering processes. Its good adhesion properties ensure that electronic components are securely fixed during soldering. After the process, the tape can be easily removed without leaving behind any residue, maintaining the cleanliness of the circuit board.

  • Motor and Electronic Device Insulation: When motors and other electronic devices operate, they generate heat. The high-temperature resistance of black Polyimide tape, up to 260 degrees Celsius, makes it ideal for applications where bundling and fixing are required. It can withstand the heat generated during operation, providing insulation and ensuring the components stay securely in place.

  • Mobile Phone Screen Repair: Black Kapton tape is also used in mobile phone screen repair. Its temperature resistance and insulation properties make it suitable for protecting the delicate circuit boards while working on the screen. By using the tape, the circuit board is shielded from potential damage caused by heat or accidental contact, extending the product's lifespan.


In addition to these specific applications, black Polyimide tape has several other uses across various industries. Some of its common applications include:


  • Electrical Insulation: Kapton tape is an excellent electrical insulator. It is used to cover and insulate electrical wires and components, protecting them from short circuits and electrical damage.

  • Heat Shielding: The high-temperature resistance of black Kapton tape makes it suitable for heat shielding applications. It can be used to cover and protect sensitive components, wires, or surfaces from high heat sources.

  • Aerospace and Automotive: Kapton tape is widely used in the aerospace and automotive industries due to its ability to withstand extreme temperatures, resist chemicals, and provide insulation in demanding environments.

  • 3D Printing: Kapton tape is often applied to 3D printer beds to provide a smooth, heat-resistant surface for printing materials to adhere to. It helps prevent warping and improves print quality.


Overall, black Polyimide tape offers excellent temperature resistance, insulation, adhesion, and durability, making it a valuable material for a range of applications where heat, electrical insulation, and secure fixing are required.


Features Of Black Kapton Tape

  • High insulation, strong adhesion, no residual, corrosion resistance

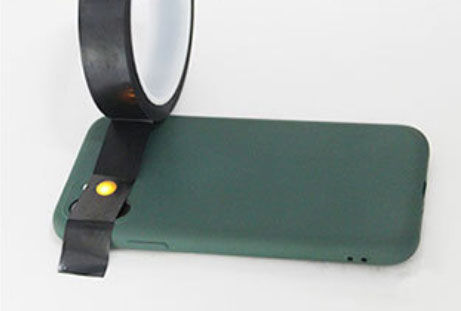

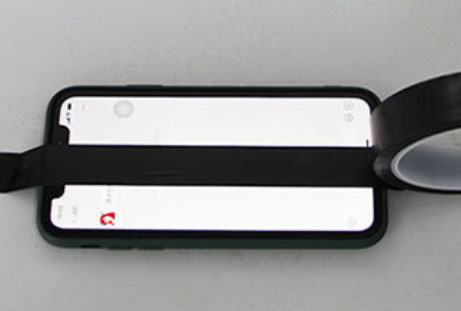

  • Good shielding effect, black kapton tape can cover 70% strong light, 100% DE low light


  • High temperature 260℃ 30mins resistant.


The Benefits Of Black Heat Resistant Kapton Tape


In various industrial applications, heat-resistant materials are necessary to maintain the integrity of machines and equipment. One of the most widely used materials for this purpose is heat-resistant black Kapton tape, which is a polyimide tape that can withstand high temperatures without losing its adhesive properties. Many kapton tape suppliers, such as Hopelight, a polyimide tape supplier in China, offer black Kapton tape for sale, and it has become a popular choice for engineers and technicians due to its numerous benefits.


  • High-temperature Resistant

First and foremost, the most significant advantage of black polyimide tape is its ability to withstand high temperatures. It can resist temperatures of up to 500 degrees Fahrenheit, which makes it an ideal choice for use in applications that involve extreme heat, such as electrical insulation, circuit board assembly, and automotive manufacturing. The heat resistance of the black polyimide tape also makes it an ideal material for use in aerospace and military applications, where temperatures can be extreme.


  • Electrical Insulation Properties

Another advantage of using black polyimide tape is its excellent electrical insulation properties. It is an excellent insulator and can withstand high voltages without breaking down or melting. This makes it an ideal choice for electrical applications where electrical insulation is required, such as transformers, motors, and generators. The high electrical insulation properties of black polyimide film tape also make it a popular choice in the electronics industry for printed circuit board (PCB) assembly and repair.


  • Highly Resistant To Chemicals, Solvents, And Moisture

In addition to its heat resistance and electrical insulation properties, black Kapton tape for sale is also highly resistant to chemicals, solvents, and moisture. This makes it an ideal choice for use in harsh environments where exposure to chemicals and moisture is common. Its resistance to chemicals and solvents also makes it an ideal choice for use in the automotive and aerospace industries, where exposure to fuel and other chemicals is common.


  • Durability

Another benefit of using black Kapton tape is its durability. It is a tough material that can withstand wear and tear, making it an ideal choice for use in applications that involve heavy use or exposure to harsh conditions. Its durability also makes it an ideal choice for use in applications where longevity is important, such as in the construction industry.

Finally, black Kapton tape is easy to apply and remove. It has a strong adhesive that can stick to most surfaces, including metal, plastic, and glass. It can also be easily removed without leaving any residue, making it a convenient choice for temporary applications or when repairs are required.


In conclusion, heat-resistant black Kapton tape is a versatile material with numerous benefits. Its ability to withstand high temperatures, excellent electrical insulation properties, resistance to chemicals and solvents, durability, and ease of application make it an ideal choice for use in a wide range of applications. Hopelight, a polyimide tape supplier, offers black Kapton tape for sale, and engineers and technicians can benefit from its use in various industries, including automotive, aerospace, construction, and electronics.


Hopelight: A Reliable Kapton Tape Factory in China

Hopelight, a leading kapton tape supplier in China, is a reliable choice for various industrial needs. We specialize in the production of high-quality kapton tape for sale, offering a diverse range of options. Notably, our inventory includes sought-after products like black kapton tape, known for its durability and versatility. Hopelight ensures precision and reliability in our manufacturing processes. For those specifically seeking kapton tape in black, our products cater to these preferences, providing a comprehensive solution for industries requiring dependable tape solutions. Trust Hopelight for your kapton black polyimide tape needs.

  • Kapton Tape Black Kapton Tape Black
  • Black Polyimide Tape Black Polyimide Tape

Black Kapton Tape FAQs

  • What is black kapton tape?

    Black Kapton tape is a high-performance polyimide film tape known for its exceptional thermal stability and electrical insulation properties. Made from a polyimide substrate with a pressure-sensitive adhesive, this black polyimide tape withstands extreme temperatures from -269°C to +400°C (-452°F to +752°F). Its superior dielectric strength and chemical resistance make it ideal for aerospace, electronics, and manufacturing, ensuring reliable performance in demanding environments.

  • What is the temperature rating for standard Kapton tape?

    The temperature rating for standard Kapton tape, which is a type of black polyimide film, is typically high, often reaching up to 500 degrees Fahrenheit (260 degrees Celsius) or more. This exceptional heat resistance is a characteristic feature of Kapton tape and black polyimide film sheets. For those seeking bulk quantities, wholesale polyester tape in black, including Kapton tape sheets, is available from various suppliers. When considering wholesale purchases, it's advisable to review the product specifications, ensuring that the chosen tape meets the specific temperature and performance requirements for the intended applications.

  • Can Kapton Black Tape be Used Outdoors?

    Yes, black Kapton film is suitable for outdoor use, providing both weather resistance and temperature stability.

  • Is Kapton Black Tape Resistant to Chemicals?

    Black Kapton Tape is generally resistant to many chemicals, making it suitable for applications where exposure to solvents or other substances may occur.
