PTFE Coated Glass Fabric Adhesive Tape
PTFE coated glass fabric adhesive tape uses a material made of glass fiber cloth impregnated with a tetrafluoroethylene resin (PTFE) dispersion solution and fired as the base material. PTFE coated glass tape has one surface treated with silicone adhesive and has excellent heat resistance and mechanical strength. Economical high-temperature cloth is mostly used in sealing machine, packaging machine, high frequency, high-temperature air duct, etc. The common thickness of PTFE-coated fabric with adhesive is 0.08 mm, 0.13 mm, 0.15 mm and 0.18 mm and 0.25 mm, other requirements can be customized.
The common thickness of our high-performance high-temperature cloth is 0.08 mm, 0.13 mm, 0.15 mm, 0.18 mm, 0.25 mm, 0.30 mm, 0.35 mm, and 0.55 mm, 0.75 and 0.95 mm. The high heat Teflon tape produced by Hopelight can be used in breathable remoulding, anti-static, military, printing and dyeing, clothing, electronics, chemicals, glass, medicine, thermoplastics, wrapping rollers, paper making, food, environmental protection, insulation, machinery, and many other fields.

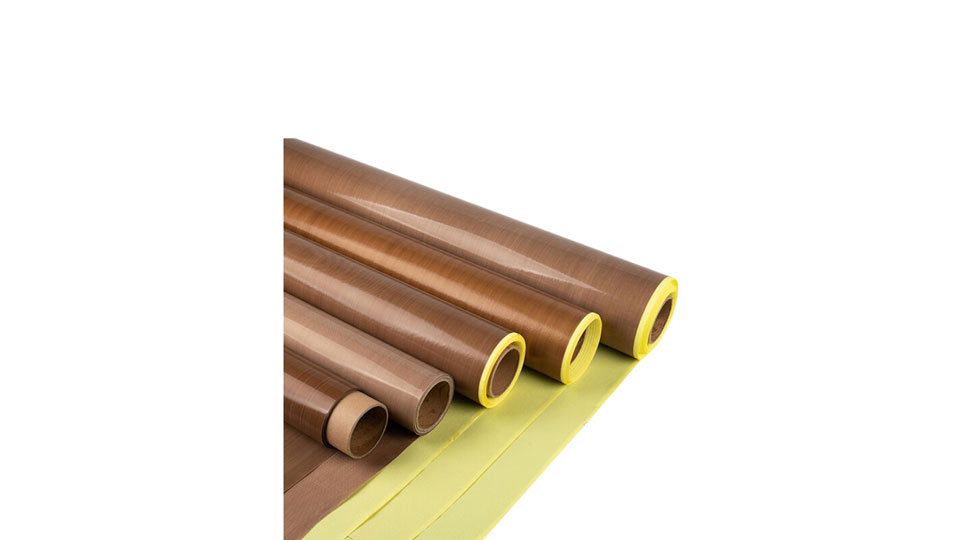

Laminated cloth (small laminators can be within 1.25 meters wide, large laminators have widths of 1.8, 2.0, 2.2, 2.4 meters, and the length varies, generally within 6 meters.) Common thicknesses are: 0.25, 0.30, 0.35 mm etc.
PTFE Coated Glass Fabric Adhesive Tape-TDS
Thickness(mm) | width(mm) | Adhesion(N/100mm) | Tensile strength(N/100mm) | Temp resistance(℃) | Color |
0.08 | 5mm-1250 | 22 | 900 | -70~260 | Amber/black/white |
0.13 | 5mm-1250 | 28 | 1700 | -70~260 | Amber/black/white |
0.18 | 5mm-1250 | 48 | 2750 | -70~260 | Amber/black/white |
0.25 | 5mm-1250 | 62 | 3650 | -70~260 | Amber/black/white |
Application Of PTFE Coated Glass Fabric Adhesive Tape
Heat-sealed and pressure-bonded parts for packaging food, rice bags, medicines, etc.
Teflon-coated glass tape is used for heat sealing of plastic film
Surface of precision pressing stick for packaging dyeing and counting fat processing
Packaging adhesives, the surface of the sticker coating machine
The friction surface of packaging hopper and guide rail.
Packaging non-adhesive and parts that need to maintain smoothness
As the inner lining of equipment accessories
PTFE fabric tape is used as an insulating liner, insulating overlook of insulating parts and other insulating overlooks
Features Of PTFE Coated Glass Fabric Adhesive Tape
Safe and non-toxic, suitable for food production;
Withstand the corrosion of almost all chemicals;
Good dimensional stability and strong tensile strength, with good mechanical properties;
High insulation performance (small dielectric constant: 2.6, tangent below 0.0025);
Resistance to microwave, high frequency, anti-purple and infrared.
Flame retardants: the oxygen limit index is below 90, and the combustion level: V-0
