Double Sided Kapton Tape

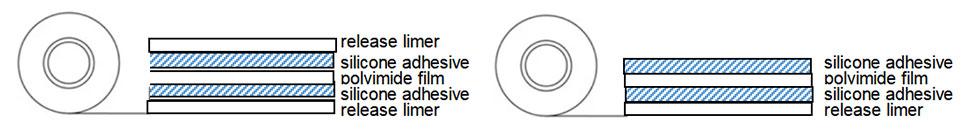

Double-sided kapton tape, also known as KAPTON double-sided tape, is based on 0.025mm polyimide film as the substrate, coated with imported silicone adhesive on both sides, with a total thickness of 0.1mm, double-sided or single-sided composite PET fluorine release liner. This high temperature resistant double-sided polyimide tape has good insulation, wear resistance, acid and alkali resistance, can withstand high temperature 280 degrees/30 minutes, 260 degrees can be used for a long time. Seeking reliable double-sided Kapton tape? Source directly from Hopelight, one of the best Kapton tape manufacturers known for quality and expertise. Get in touch today!
Parameters Of Double Sided Kapton Tape
| Color | Amber |
| Backing | Polyimide film |
| thickness (mm) | 0.1 |
| Adhesion (N/25mm) | 9 |
| Tensile Strength (kg/25mm) | 14 |
| Elongation (%) | 65 |
| Temperature Resistance (℃) | 280℃ 30mins |
| Withstand Voltage (KV) | 4000 |
| Length(mm) | 10 |
| Release liner(mm) | 0.075 |
Features Of Double-Sided Kapton Tape
Strong adhesion, good serviceability, high temperature and solvent resistance, no tin penetration, no residual glue left on the covered surface after tearing
Excellent insulation, wear resistance, acid and alkali resistance, 280℃ can be used for a long time
Kapton double-sided tape has excellent electrical properties, low voltage, good mechanical properties, friction resistance, tear resistance
A variety of specifications 5mm-500mm can be customized according to the requirements of each body
Applications of Double-Sided Kapton Polyimide Tape
1. High-Temperature Insulation: Kapton double-sided tape is used in electronics for insulating components exposed to high temperatures. Its excellent thermal stability allows it to withstand extreme heat without degrading, making it ideal for protecting sensitive parts in devices like 3D printers, circuit boards, and aerospace applications where thermal resistance is crucial.
2. Electrical Insulation in Electronics: The double-sided kapton polyimide tape is widely used for electrical insulation in electronics, offering strong adhesion and dielectric strength. It prevents short circuits and provides protection in devices like transformers, capacitors, and motors. Its dual-sided adhesive helps secure wires and components while maintaining electrical isolation in compact electronic assemblies.
3. Flexible Circuit Board Manufacturing: In the production of flexible printed circuit boards (FPCBs), Kapton double side Kapton tape is essential for bonding layers of flexible materials. Its heat resistance and stability ensure that it holds up during the soldering and reflow processes, making it an ideal choice for assembling flexible circuits in wearable electronics and compact devices.
4. Aerospace and Automotive Applications: Double sided Kapton tape is extensively used in aerospace and automotive industries due to its resistance to harsh environmental conditions. It can bond materials, insulate components, and protect wiring in extreme temperatures, ensuring reliability in high-performance systems like aircraft engines, spacecraft, and automotive electronics where both thermal and chemical resistance are required.
